Product description

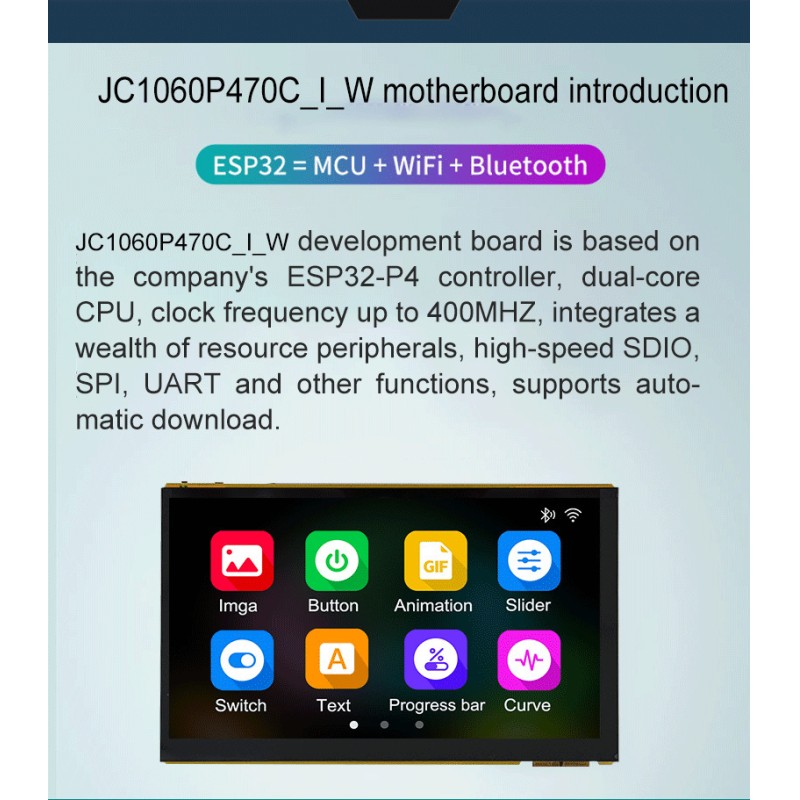

This LCD module uses ESP32-P4 module as the main control, the main control is
a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can
reach 400MHz,768 KB HP L2MEM,32 KB LP SRAM, 128 KB HP ROM , 32M
PSRAM,Flash size is 16MB, The display resolution is 1024*600, without touch or
Capacitive touch. The module includes LCD display screen, backlight control circuit,
touch screen control circuit . Reserve the TF card interface ,IO port interface, this
module supports development in arduino IDE, ESP IDE, Micropython and Guition.
Features
●7.0-inch color screen, support 24 BIT RGB 16.7M color display, display
rich colors
●1024X600 resolution
●The sample program has been programmed in the factory and can be
plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate
rapid secondary development
●Support one-click download program
●Lithium battery interface circuit
●Industrial-grade process standards, long-term stable work
Applications
The 7 inch ESP32 P4 Smart displays have a wide range of applications:
- 3D Printers: Give clear status displays and natural touch controls
- Medical Hardware: Provide solid interfacing for symptomatic nd observing devices
- Smart Domestic Frameworks: Make locks in control boards for computerization solutions
- Automotive Rebellious: Construct responsive dashboards and data displays
- EV Charging Stations: Offer user-friendly charging status and installment interfaces
- Industrial Mechanization: Coordinated into control boards and observing systems
- Security Hardware: Display observation nourishes and get to control interfaces
- Commercial Kitchen Hardware: Give temperature and timing controls
- Audio Hardware: Make intelligently control surfaces for proficient gear
- Handheld Gadgets: Control convenient rebellious and testing equipment
|
Size
|
7 inch
|
|
Resolution
|
1024 x 600
|
|

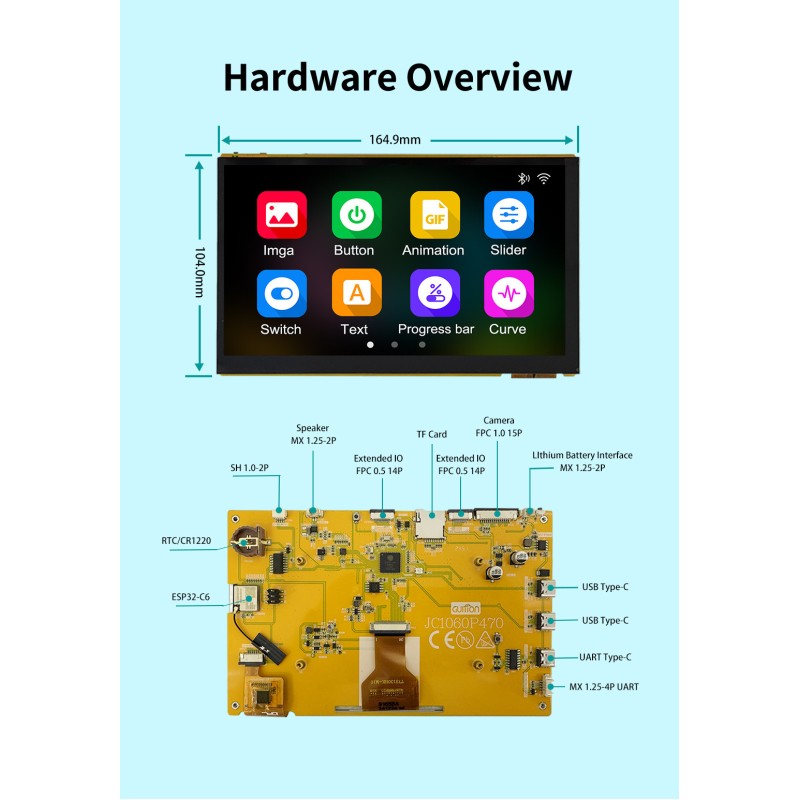

Outline size
|
164.9x 104 mm
|
|
Active Area
|
154.08 x 85.92 mm
|
|
Viewing Direction
|
Full HD View
|
|
Panel Type
|
TFT+IPS
|
|
Brightness
|
300 cd/m2
|
|
Interface
|
UART
|
|
Touch
|
Capacitive touch
|
